| Delineator |
| |
 |

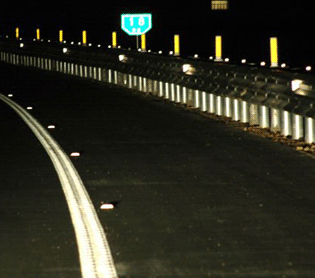

Delineators are ideally suitable for dangerous curves, central verges, Islands etc. High quality round reflectors fixed on both sides make it highly visible in poor light condition.
They can be installed horizontally as well as vertically. Due to specially designed body and reflectors fixation method, their reflectivity and durability remain for a long life.
|
 |
|
| |
|
| « Model No. AID - 01 |
 |

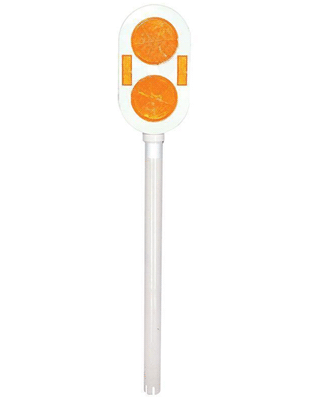

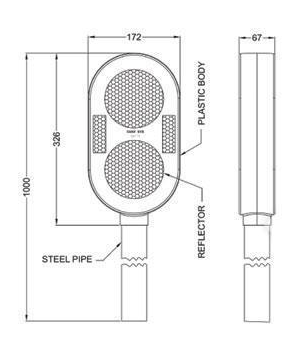

Two high performance 100mm Dia reflectors and two rectangular reflectors of 70mm x 23mm are fixed on both sides of Guide Post. Reflectors are positioned at the best eye guiding level, so that drivers can be warned from a safe distance.
The body of Guide Post is moulded in ABS plastic and it is fixed on powder coated steel pipe of 1 mtr height.
Weight 1780 Gms. (Aprox)
|
|
|
|
| |
| Model No. AID - 02 » |

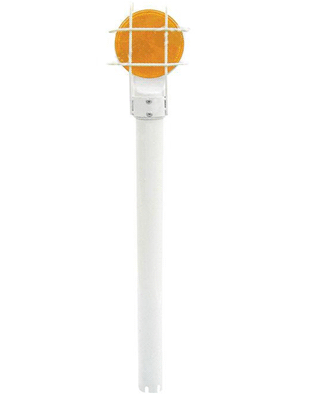

ABS round body fitted with 2 Nos 100 mm dia highly reflective reflectors made out of PMMA and mounted on MS pipe of 50 duly powder coated, anti rust & anti theft steel net.
Available in Red, White or Yellow, White combination.
Height - 1000 mm
Reflector - 100mm dia
Pipe - 50mm dia
|
|
|
|
| |
|
| « Model No. AID - 03 |
 |

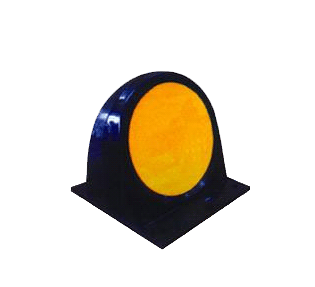

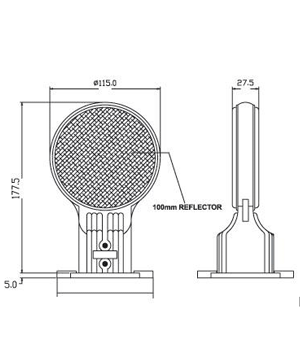

Can be installed on the ground or on the wall. Best suitable in tunnels, bridges. It can be installed with epoxy and nails.
|
|
|
|
| |
| Model No. AID - 04 » |

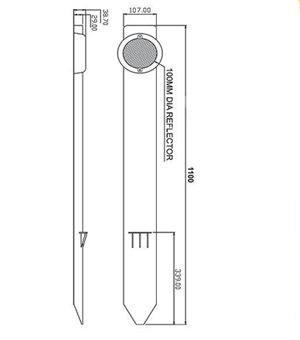

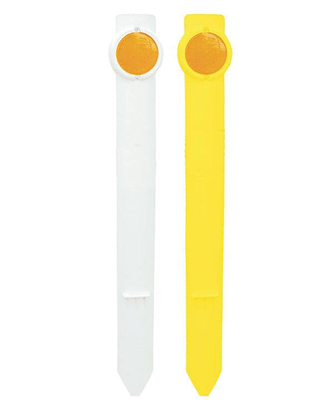

These Delineators make the dangerous curves, central verges, Islands etc more visible to motorists at night and in the daytime. Made of highly flexible material, restores back to their erect posture even after being hit by a speeding vehicle without damaging them. Fitted with 100mm PMMA reflector, they emit excellent reflection during night time. They can also be fitted with bi-directional reflectors.
The reflectors are available in: Amber, White or Red Color.
|
 |
|
|
|
|
| |
|
| « Model No. AID - 05 |
 |

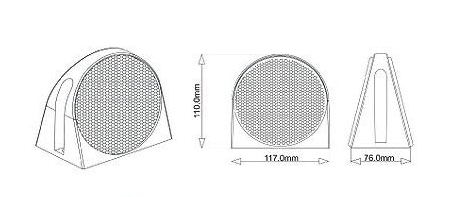

| DIMENSION |
| HEIGHT : 110 MM |
| WIDTH : 117 MM |
| 76MM DIA |
|
|
|
|
| |
| Model No. AID - 06 » |

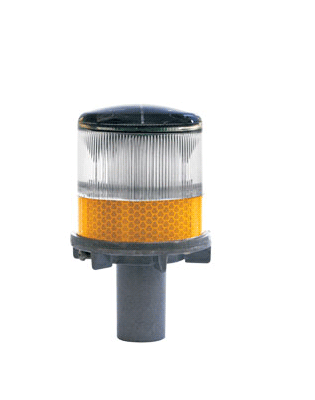

Solar Delineator
A superior quality solar delineators, which can be mounted on a pole, cone etc to warn motorists from a distance of an approaching crossovers, flyovers etc. The delineator provides clear visible guidance in all weather conditions and help to ensure driver safety. With high quality LED flashing light of this solar delineator proves more receptive to eyes and is visible from a safe distance. Long lasting, easy to mount makes it user friendly and economical.
Technical Specifications
▪ Four ultra bright flashing LEDs.
▪ Available in red or yellow colors.
▪ Special base for mounting on cone, pole etc.
▪ High quality reflective solar panel to maximize sun absorption.
▪ Operating time 3-4 consecutive days (with full charge). |
|
|
|
| |
|
| |
|
