Road Studs

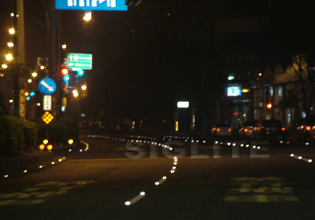

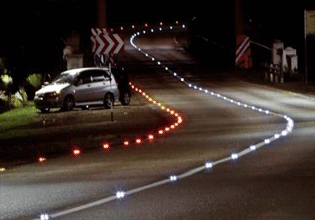

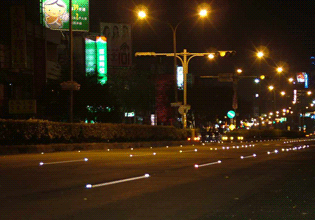

Road Studs are specifically used to improve safety, reducing accidents on the road by providing information to drivers about the road ahead directly in their natural field of vision.

Road Stud specifically used to save lives and reduce accidents on the road by providing up to a ten-fold increase in visibility, as well as better durability in the most demanding conditions. Road studs have been able to find a suitable place on approach roads to highest offices in INDIA.

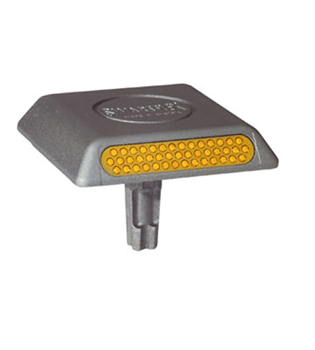

« Model No. AIST - 01
Road studs made of metal are particularly suitable for roads with heavy traffic. We recommend metal road studs also for locations where the asphalt is not of optimum quality.
Dimensions : 100 x 100 x 19.8 mm
Length anchoring shank : 50 mm
Aluminium body with 1 x 43 or 2 x 43 glass elements

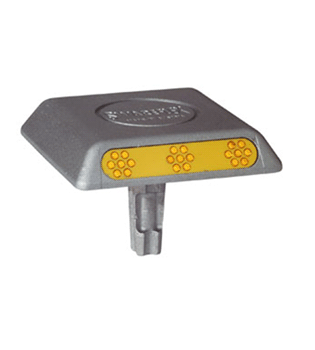

Model No. AIST - 02 »
Road studs made of metal are particularly suitable for roads with heavy traffic. We recommend metal road studs also for locations where the asphalt is not of optimum quality.
Dimensions : 100 x 100 x 19.8 mm
Length anchoring shank : 50 mm
Aluminium body with 1 x 21 or 2 x 21 glass elements

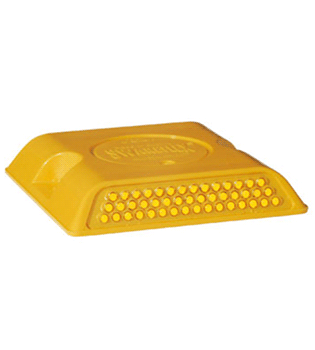

« Model No. AIST - 03
Our new design of the plastic road stud has two side finger grips for easy handling. The newly designed base gives excellent bonding with the roadway with minimal use of adhesive. We recommend fixing with a 2-component adhesive. Our road studs are fitted with extremely durable glass elements - their surfaces are cleaned by rain and vehicles passing over them.
Dimensions : 100 x 100 x 17.9 mm
Plastic body with 1 x 45 or 2 x 45 glass elements
Our plastic road studs are available in the following colour combinations:
Body: yellow, white, blue, orange
Glass elements: yellow, white, blue, red or green
These colours are available in any combination.

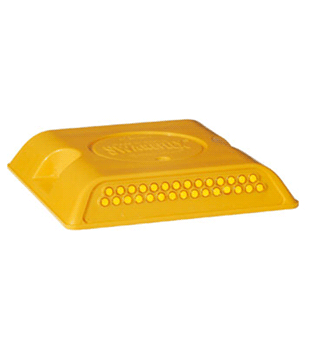

Model No. AIST - 04 »
Our new design of the plastic road stud has two side finger grips for easy handling. The newly designed base gives excellent bonding with the roadway with minimal use of adhesive. We recommend fixing with a 2-component adhesive. Our road studs are fitted with extremely durable glass elements - their surfaces are cleaned by rain and vehicles passing over them.
Dimensions : 100 x 100 x 17.9 mm
Plastic body with 1 x 29 or 2 x 29 glass elements
Our plastic road studs are available in the following colour combinations:
Body: yellow, white, blue, orange
Glass elements: yellow, white, blue, red or green
These colours are available in any combination.

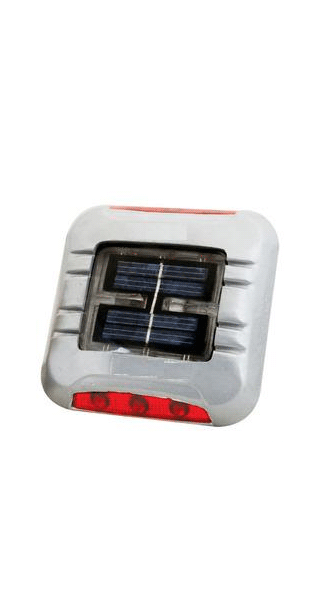

« Model No. AIST - 05
These solar - powered environment friendly, LED based Intelligent Road Studs are specifically used to improve safety, reducing accidents on the road by providing information to drivers about the road ahead directly in their natural field of vision. Solar Road Stud specifically used to save lives and reduce accidents on the road by providing up to a ten-fold increase in visibility, as well as better durability in the most demanding conditions.

Benefits include: Additional "Preview" time for drivers on sharp bends roads. Ability to see road delineation reduced visibility caused by fog, rain or surface spray.
Visible delineation on wet roads where white lines become invisible due to reflected light.

These simply installed, maintenance free, highly robust in- pavement studs use state of art SMD technology to effectively convert sunlight using on board solar panels into stored energy.

Energy consumption is managed using a microprocessor so that just 2 hours of sunshine will provide enough battery to last 4 days - more than enough to ensure the system keep working.

▪  Construction : Aluminum-alloy shell
▪ 100% water proof design according to Ip65.
▪ Dimension: 125mm x 125mm x 25mm (shank 60mm)
▪ High Efficiency Mono-Crystalline Solar Panel 2.4 V / 0.3 Watt.
▪ One Ni-Mh or NI-cd Rechargeable Battery (1.2V / 1600 MA).
▪ Six Super Bright LEDs with 10,000 to 18,000 mcd (Millicandela).
▪ View Distance: upto 1000 meters.
▪ Flash Rate: 2Hz or according to customers requirements
▪ Bearable Weight: 10 Tons approx

▪ Color: yellow, red, blue, green or white.
▪ Working Time: 3 to 4 days after fully charged battery.
▪ Charging Time: 5 to 6 hours from direct sun light.
▪ Working Temp: 10o ~ 75o C
▪ Life Span : three to five years.
▪ Easy installation, no maintenance
▪ Unbreakable poly carbonate clear facing designed for maintenance free operation.
▪ Automatically turns on at night and turns off at dawn.
▪ High visibility LED’s ensure easy and safe night driving.


Model No. AIST - 06 »
Advantage :
▪ Improves road delineation, particularly effective in poor weather
▪ Up to 1000 meters visibility Irrespective of head-light efficiency
▪ Increase driver visibility and awareness to hazards
▪ Frequency safely outside the epileptic risk zone
▪ Reliable and compact design
▪ Bearable Weight: 10 Tons approx
▪ Clear reference points at ground level
▪ Improved driver reaction times
▪ Avoidance of sudden braking and last minute vehicle collision
▪ Reduces use of headlight high beam
▪ Alternative to expensive street lighting
▪ Maintenance free-fully self contained
▪ Reliable all night, all year round performance
Dimensions : 100 x 100 x 21 mm.
Stamp Size : 50 mm approx
Stamp Dia : 33 mm
Battery : 1600 MA / 1.2 volts Ni-Mh
Solar Pannel : Mono-Crystalline 2.4 V / 0.3 Watt.
LEDs : 4 Nos. Super Bright (2 Nos. each side)
Available Color : Red, Amber or White
Weight of the Stud : 360 gms. (approx.)
Working Time : 4 Days after fully charged battery
